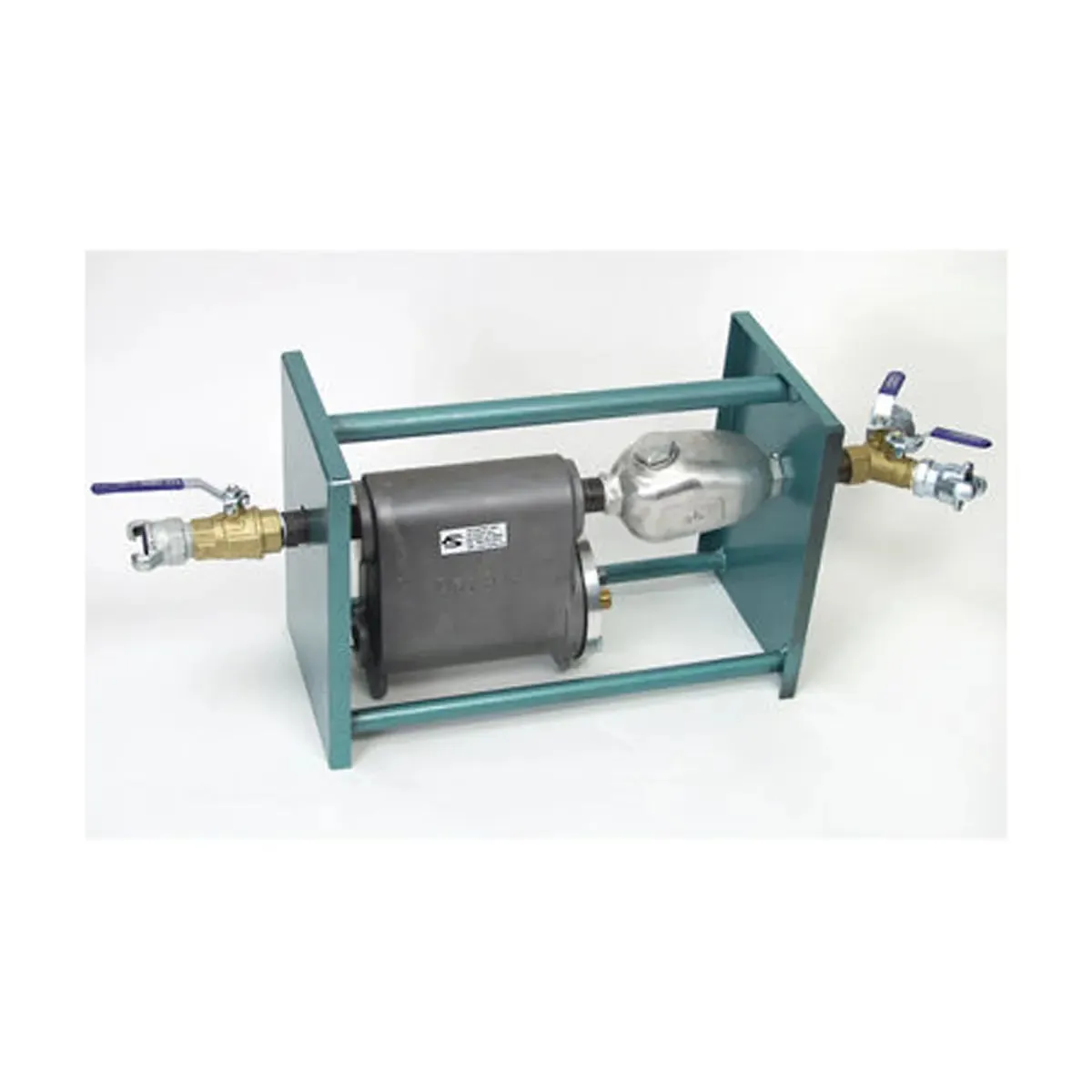

CSAP-2 CS Unitec AirPac Automatic Dryer/Cleaner for Pneumatic Tools
Extends life of pneumatic power tools
Features
- Removes 98% of water and contaminants from both portable and stationary compressed air systems to protect pneumatic tools
- An automatic float valve automatically ejects the accumulated water and dirt
- Maintenance-free, no filters or parts to replace or service
- Includes automatic 1/2 pint oiler; prevents tools from freezing in cold environments
- Two tool outlets; Chicago couplings on all connections
- Weighs 40 lbs., max. air volume 185 CFM
How it works
- Air compressors compress air into small areas – this causes heat, which contains moisture
- As heated air travels through airlines, it cools, creating water droplets
- When this air/water mixture enters the AirPac, it travels through a baffle that traps the water and dirt and drops it into a holding area
- Dry air then enters the lubricator and is mixed with oil and sent to the tool
- When enough water is accumulated, a float allows the water and dirt to be automatically ejected
